Key Features:
- 300mm Polypropylene Cone (PP Cone)
- 400 Rated/RMS Input Power
- High-ridged Two-piece Diaphragm for solid bass
- X-motif cap Technology for resonance control
- Single, multi-layered, voice coil.
- Aluminum bobbin for better thermal conductivity
- Airflow control for optimal heat radition
- Stress controlled spider
- Push-terminals for easy connection
- Sealed/Ported installation capabillity
Speaker Features:
- Speaker Size 300mm
- Oversized Dimension Yes
- Speaker Cone Design Diamond-Array pattern
- Magnet Type Ferrit
- Voice-coil single, multi-layer voice coil
- Terminals Push Type
- Spider Stress controlled spider
- Bottom-Yoke Fully closed bottom yoke
- Heat dissipation technology Airflow control
- Installation Capabillity Sealed / Ported
- Speaker/woofer Specifications
- Peak Input Power 2000W
- Rated Input Power 400W
- Woofer Cone material Polypropylene (PP) Cone
- Center Cap Type x-motif cap
- Speaker Basket Steel
- Speaker Surround Foam
- Spider Type Stress controlled Spider
- Sensitivity 85dB/W/m
- Frequency Response 29Hz ~ 300Hz
- Speaker Impedance 4Ω
- Dimensions (W x H x D) 326 x 326 x 155.4mm
- Mounting Depth 137mm
- Mouting Hole Diameter Ø 280mm
- Speaker Weight 4200gr
Subwoofer Parameters:
- Nominal impedance (Z) 4Ω
- DC resistance (Re) 3.7Ω
- Resonant frequency (FSO) 24.4Hz
- Mechanical Q factor (QMS) 6.79
- Electrical Q factor (QES) 0.52
- Total Q factor (QTS) 0.483
- Voice coil inductance (LBM) 2.04mH
- Voice coil diameter (d) 50mm
- Force factor (BL) 12.9T/m
- Peak excursion Xmax 5.9mm
- Moving mass (MMS) 152gr.
- Volume accoustic compliance (VAS) 104liter
- Piston Area (SD) 0.0512m²
- Displacement 1.2cc
- Sealed box volume 35.4liter
- Sealed Box Dimensions 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD)
- Vented box volume 42.5liter
- Vented Box Dimensions 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD)
- Port dimensions (labyrinth) (W x H x L) 35 x 324 x 736mm
Related products

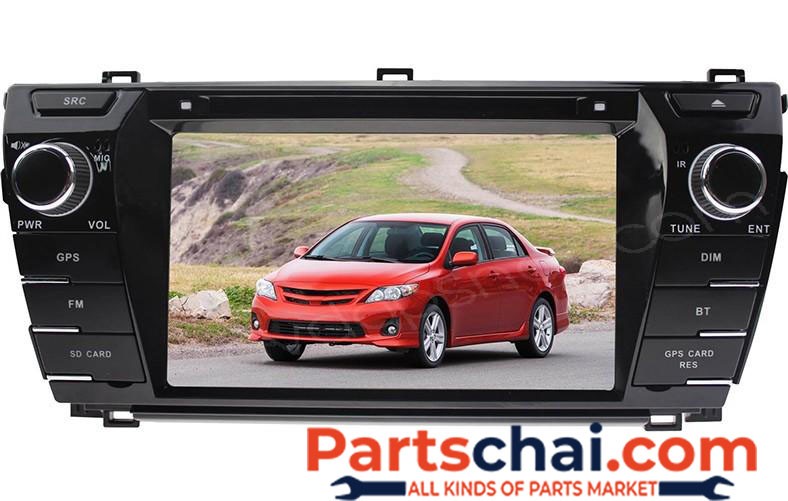

TOYOTA COROLLA 2013 Built In DVD
৳ 15,435.0
৳ 16,485.0
Meltimedia System all car
৳ 2,520.0
৳ 2,625.0

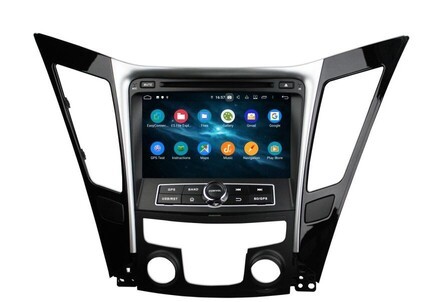

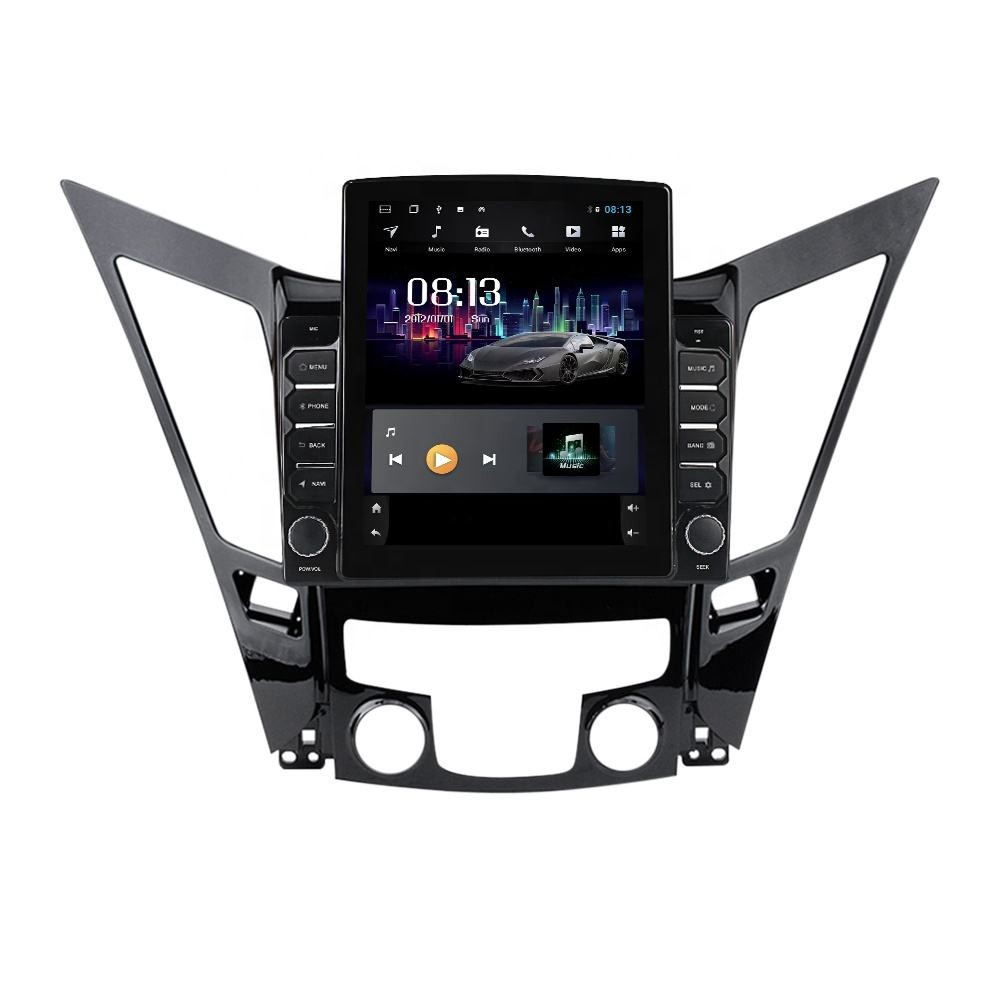

HYUNDAI SONATA Built in Dvd 2010
৳ 16,380.0

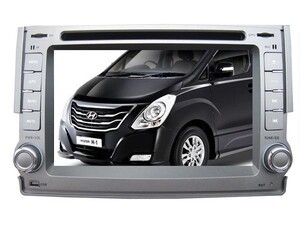

HYUNDAI H1 Built In DVD 2007-2012
৳ 19,740.0
pioneer speaker 220w.max all car
৳ 1,905.0
৳ 2,005.0
All Car Navigation Entertainment System Hd 1080p high Resolution
৳ 6,305.0
৳ 6,505.0
Dual Lens Vehicle Black box DVR HD 1080
৳ 4,505.0
All Car Double Din Android System Led Full Hd
৳ 14,305.0
৳ 14,505.0
Prado Land Cruiser 2015 Android Dvd
৳ 23,310.0
৳ 23,625.0

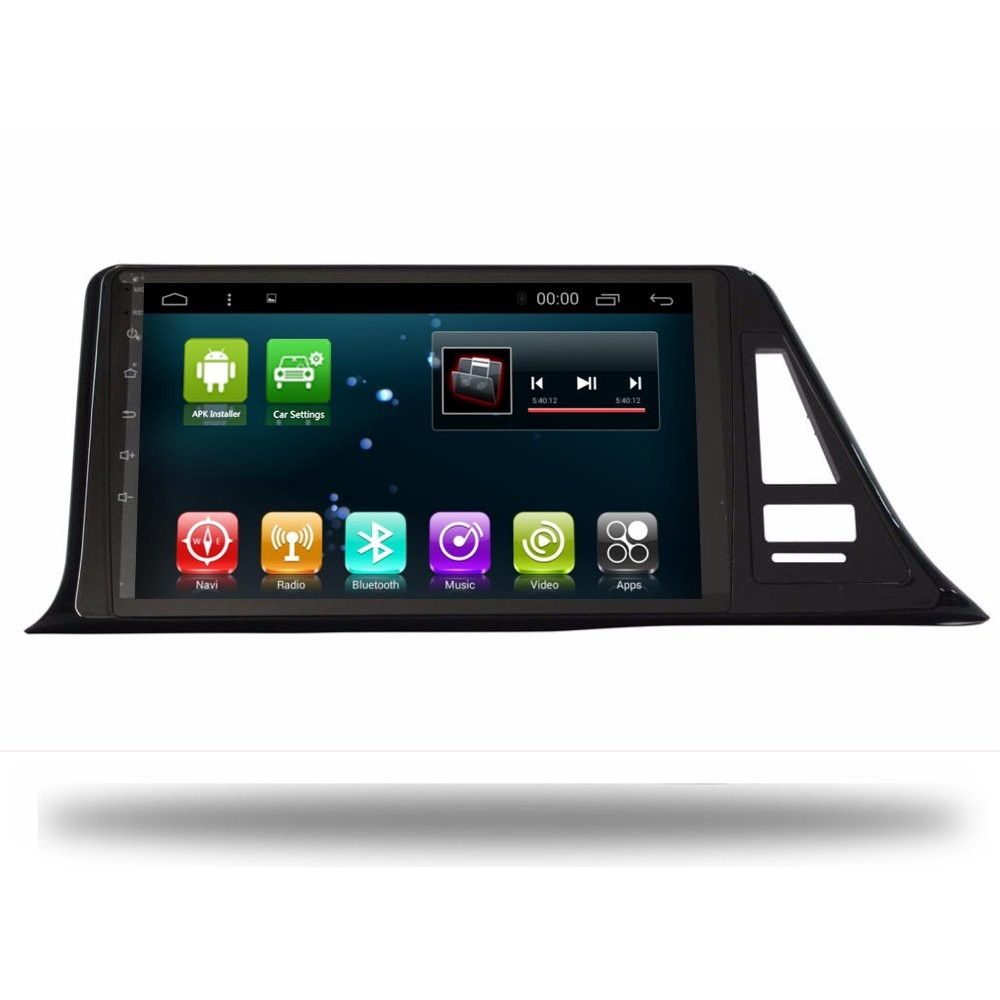

Car Multimedia Player For Toyota C-HR
